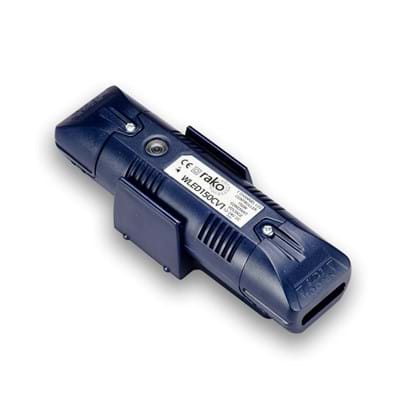

For larger single-colour LED loads, WLED150CV1 provides constant-voltage dimming within a Rako wired installation. Its single channel is rated at up to 150W at 12V or 300W at 24V. A suitable external DC supply is required and is not included. Match the supply voltage to the LED fittings and observe the manufacturer load and connection requirements.
Manufacturer documentation
WLED150CV1 technical specifications
| Load type | Constant-voltage LED |
|---|---|
| Maximum load | 150W at 12V DC; 300W at 24V DC |
| Minimum load | 1W |
| LED supply | 12V or 24V DC |
| Network supply | 15V DC from Rako wired network |
| Dimensions | 172 × 46 × 40mm |
Selection and installation advice
Match the LED voltage to the external power supply and check the total connected wattage. Do not use for constant-current fittings. Allow for cable voltage drop and accessible positioning of the controller and supply.
For the wiring diagram and complete installation requirements, see the Rako WLED150CV1 manufacturer datasheet.
Planning a system or checking an existing installation? Explore our Rako lighting control range and project advice. Send us the model numbers, room requirements and load or fitting details so we can help specify the right parts.
