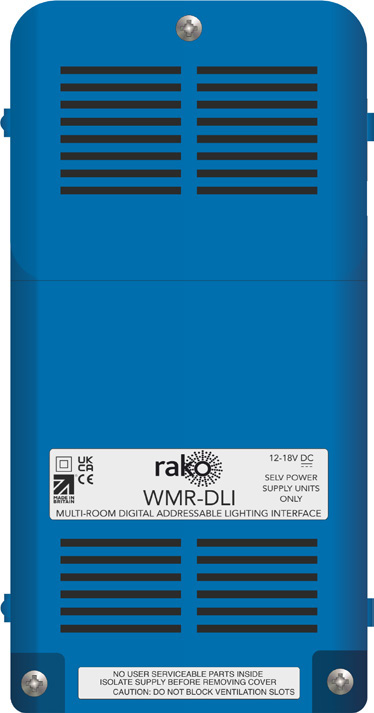

WMR-DLI brings multi-room addressable DALI lighting into a Rako wired installation. It supports up to 64 ballasts grouped across as many as 16 rooms, with configuration in Rasoft Pro. Network connection is available through RJ11 to a RAK-LINK or RAK-STAR, or through the onboard CAT5/CAT6 punch-down connections. Compatible DT6 or DT8 ballasts support RGBW and colour-tunable LED applications. Rako wired keypads, sensors and interfaces provide system control.
Manufacturer documentation
WMR-DLI technical specifications
| DALI capacity | Up to 64 ballasts |
|---|---|
| Rooms | Up to 16 |
| Scenes | 16 per room |
| Ballast types | DT6 or DT8 |
| Supply | DALI 12V DC; Rako wired network 15V DC |
| Dimensions | 190 × 105 × 66mm |
Selection and installation advice
Plan rooms, channels, ballast addressing and DALI wiring before commissioning. Confirm the driver supports the required dimming, colour or tunable-white function.
For the wiring diagram and complete installation requirements, see the Rako WMR-DLI manufacturer datasheet.
Planning a system or checking an existing installation? Explore our Rako lighting control range and project advice. Send us the model numbers, room requirements and load or fitting details so we can help specify the right parts.
