Purchase this item and get
- Range of drop distances available to suit varying ceiling heights
- Three standard sizes with customisable sizing available
- Supplied with IR, Contract Control, and RS232 control options
- Made in house, in our dedicated facilities located in Great Britain and the USA
- Slotted mounting system for universal projector mounting

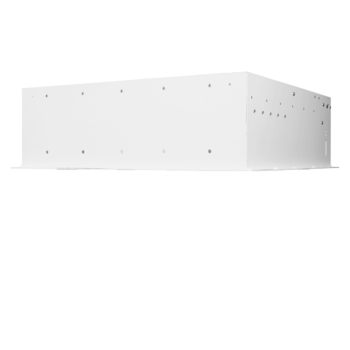

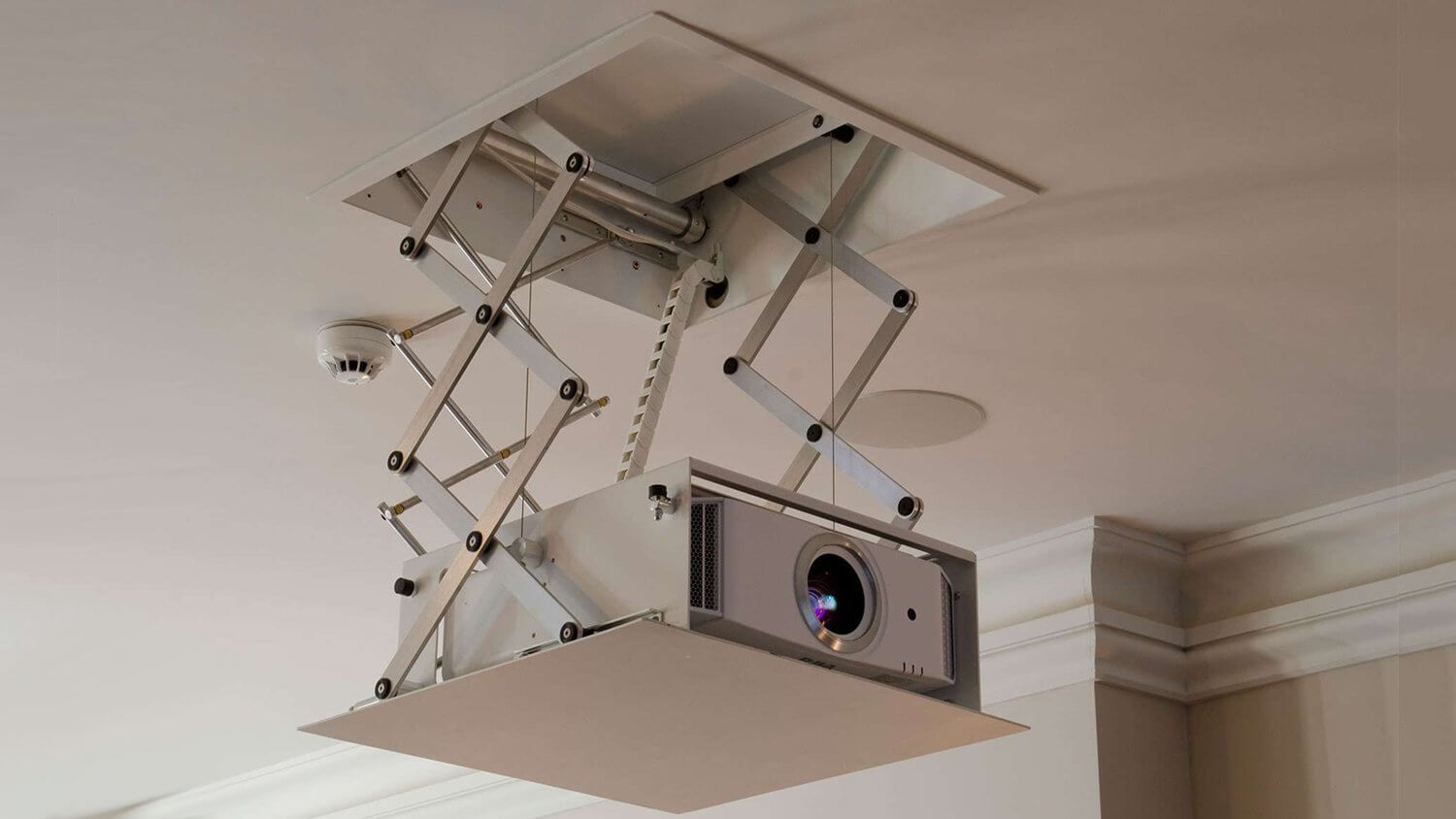

Three standard sizes of PD Projector Drop mechanism cover most common sizes of home cinema projector, while customisable nature of the PD’s design allows for resizing to suit large units. All PD mechanisms are fitted with lid fall arrest cables as standard and feature tilt adjustment on the main carriage to adjust the pitch of the projector when the mechanism is open. Drop distance is easily adjustable once installed to allow exact positioning of the project and the mechanisms precision engineering means the unit will hit the same stop point every time.

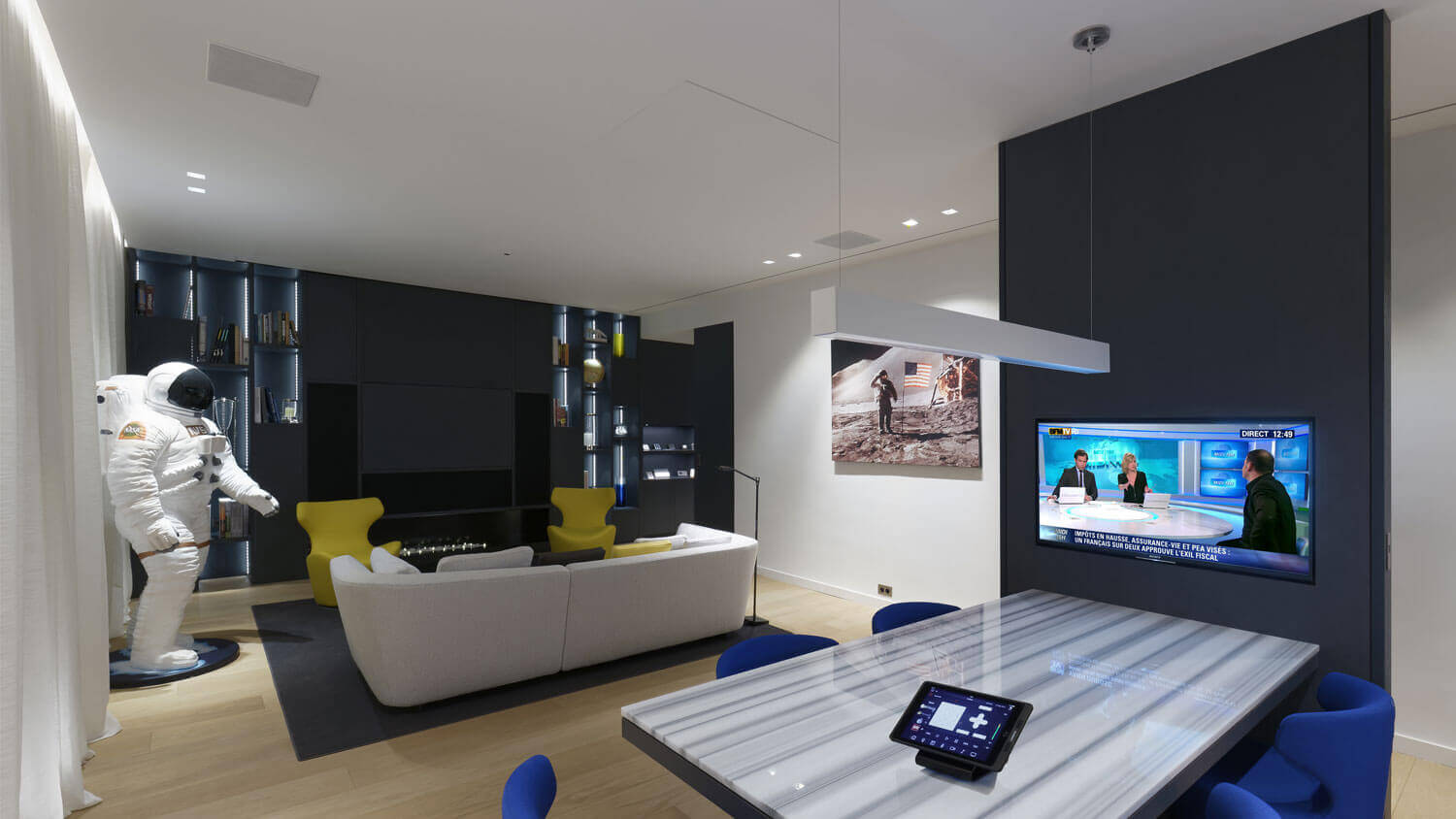

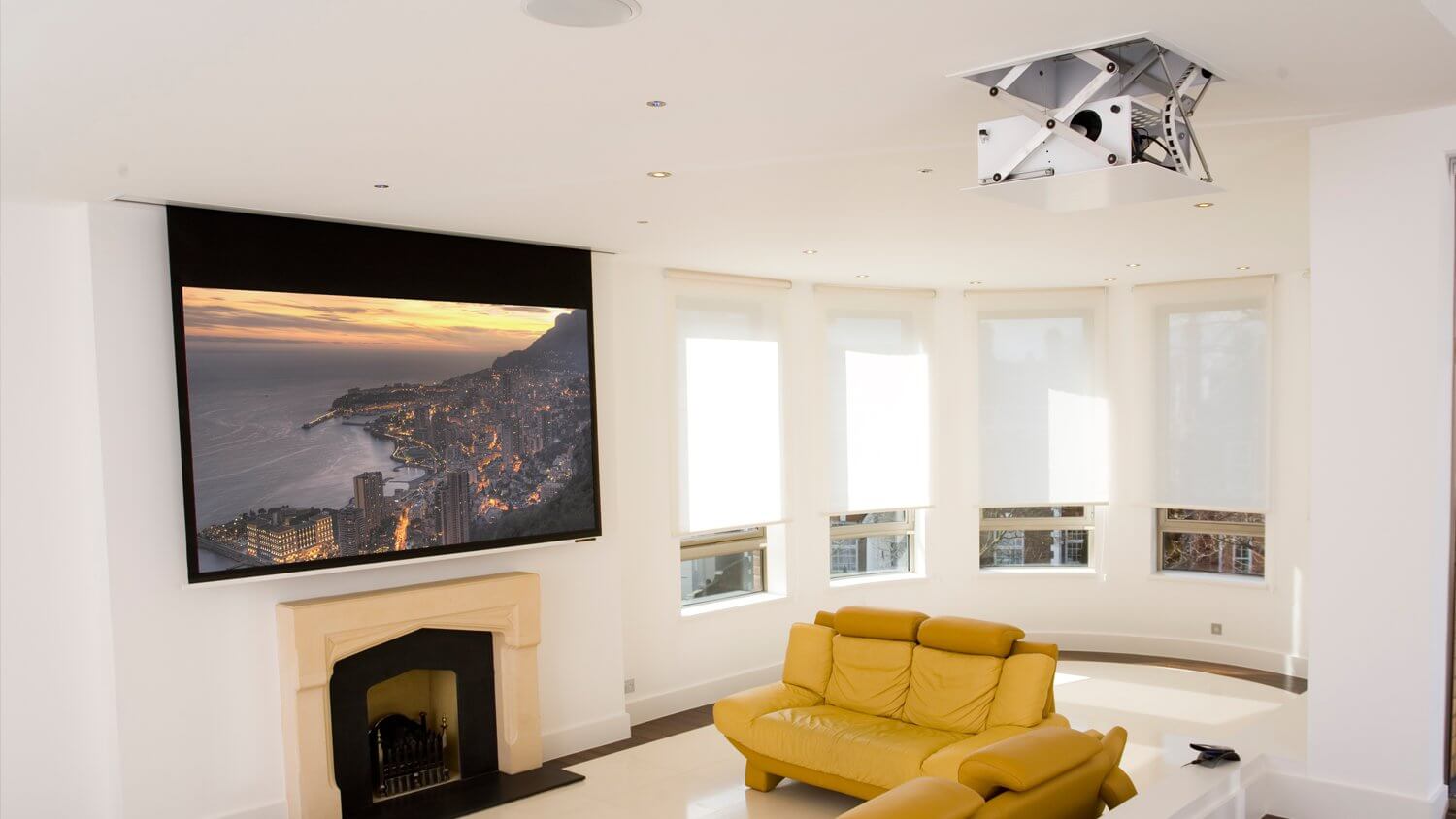

The PD Projector Drop mechanism is the perfect solution for transforming any living space into a home cinema.
| TECHNICAL SPECIFICATION | ||||
|---|---|---|---|---|
| Product Code | PD1 | PD2.5 | PD3.5 | PD-CUSTOM |
| Control Options | RS232 / Contact Closure / IR (RF Available) |
RS232 / Contact Closure / IR (RF Available) |
RS232 / Contact Closure / IR (RF Available) |
RS232 / Contact Closure / IR (RF Available) |
| Decibel Rating | 46dB | 46dB | 59dB | Variable |
| Depth Within Ceiling | 210mm (8.26″) | 211mm (8.30″) | 261mm (10.27″) | Required Height |
| Finish (Custom Available) | Satin White Paint – RAL9910 | Satin White Paint – RAL9910 | Satin White Paint – RAL9910 | Custom Finish |
| Max Projector Size (WxDxH) | 400 x 460 x 190mm (15.74 x 18.11 x 7.48″) |
505 x 560 x 195mm (19.88 x 22.04 x 7.67″) |
560 x 650 x 235mm (22.04 x 25.59 x 9.25″) |
Required Projector Size |
| Max Weight | 15kg (33lbs) | 15kg (33lbs) | 45kg (99lbs) | Required Weight |
| Movement Type | Motorised | Motorised | Motorised | Motorised |
| Power Consumption | 110W | 110W | 110W | N/A |
| Power Supply | 240V or 110V | 240V or 110V | 240V or 110V | 240V or 110V |
| Travel From Ceiling | 400mm (15.74″) – Standard 700mm (27.55″) – Available 940mm (37.00″) – Available |
400mm (15.74″) – Standard 700mm (27.55″) – Available 940mm (37.00″) – Available |
740mm (29.13″) – Standard 1200mm (47.24″) – Available |
Required Travel |
| Shipping Information | ||||
| Shipping Dimensions | 74 x 74 x 32cm (29.13 x 29.13 x 12.59″) |
95 x 95 x 35cm (37.40 x 37.40 x 13.77″) |
120 x 100 x 50cm (47.24 x 39.37 x 19.68″) |
Variable |
| Shipping Weight | 22kg (49lbs) | 32kg (70lbs) | 50kg (110lbs) | Variable |
| Downloads / Support | ||||
| Specification Tools | ||||
| Technical Sheet |  PD1 Tech |
PD2.5 Tech |
PD3.5 Tech |
|
| Instructions | PD1 Instructions |
PD2.5 Instructions |
PD3.5 Instructions |
|
| CAD |  PD1 CAD |
PD2.5 CAD |
PD3.5 CAD |
|
