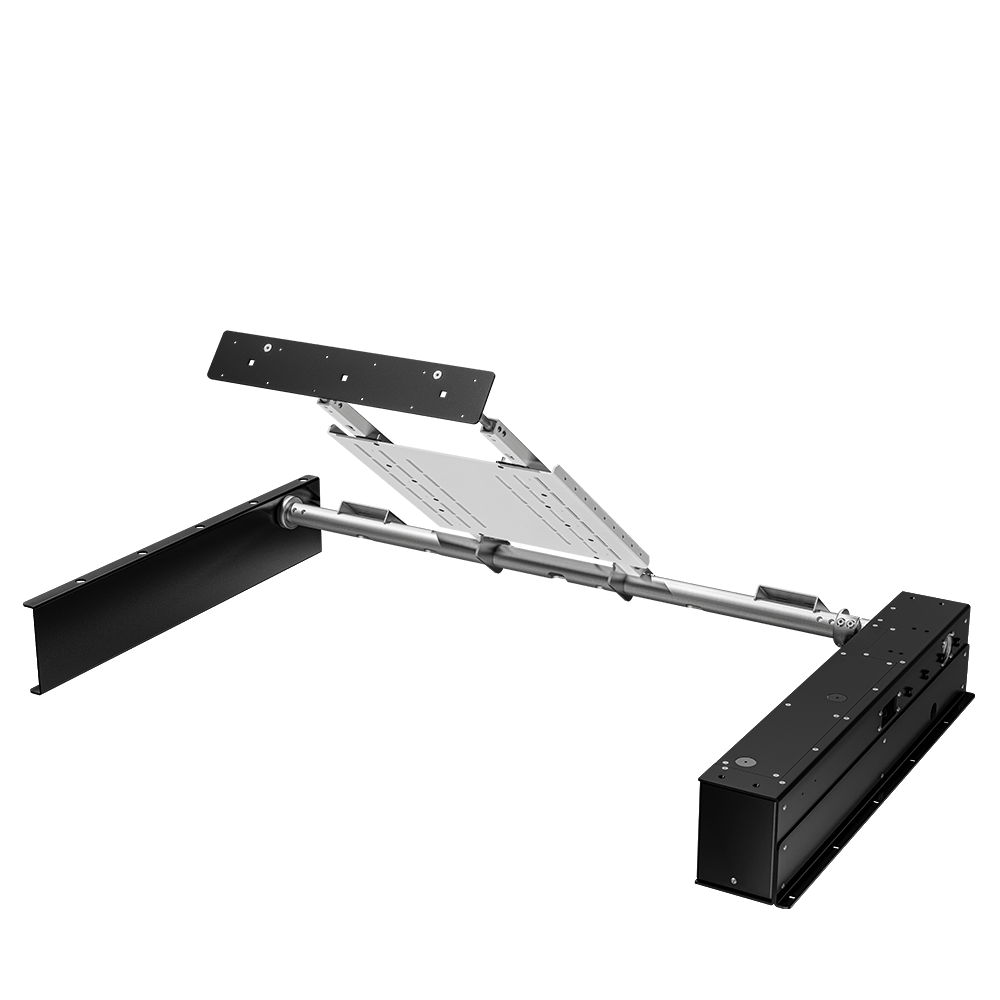

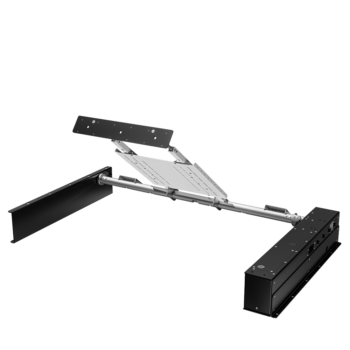

Available in 3 standard sizes, or available individually sized per order, all Hinge Up mechanisms are built to perfectly suit the application.
- Near Silent Motor System
- Easily Adjustable Limit Switches
TECHNICAL SPECIFICATION
| PRODUCT CODE | HU4 | HU5 | HU6 |
|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| MAX ROTATION | 90° | 90° | 90° |
| MAX SCREEN SIZE (H X W X D) | 680 X 1130 X 65MM (26.8 X 44.5 X 2.6″) | 800 X 1330 X 65MM (31.5 X 52.4 X 2.6″) | 920 X 1530 X 65MM (36.2 X 60.2 X 2.6″) |
| MAX WEIGHT | 50KG (110LBS) INCLUDING CABINET WEIGHT | 50KG (110LBS) INCLUDING CABINET WEIGHT | 50KG (110LBS) INCLUDING CABINET WEIGHT |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED |
| SHIPPING INFORMATION | |||
| SHIPPING DIMENSIONS | VARIABLE | VARIABLE | VARIABLE |
| SHIPPING WEIGHT | VARIABLE | VARIABLE | VARIABLE |
| DOWNLOADS / SUPPORT | |||
| TECHNICAL SHEET |  HU4 TECH |
HU5 TECH |
HU6 TECH |
| CAD |  HU4 CAD |
HU5 CAD |
HU6 CAD |
