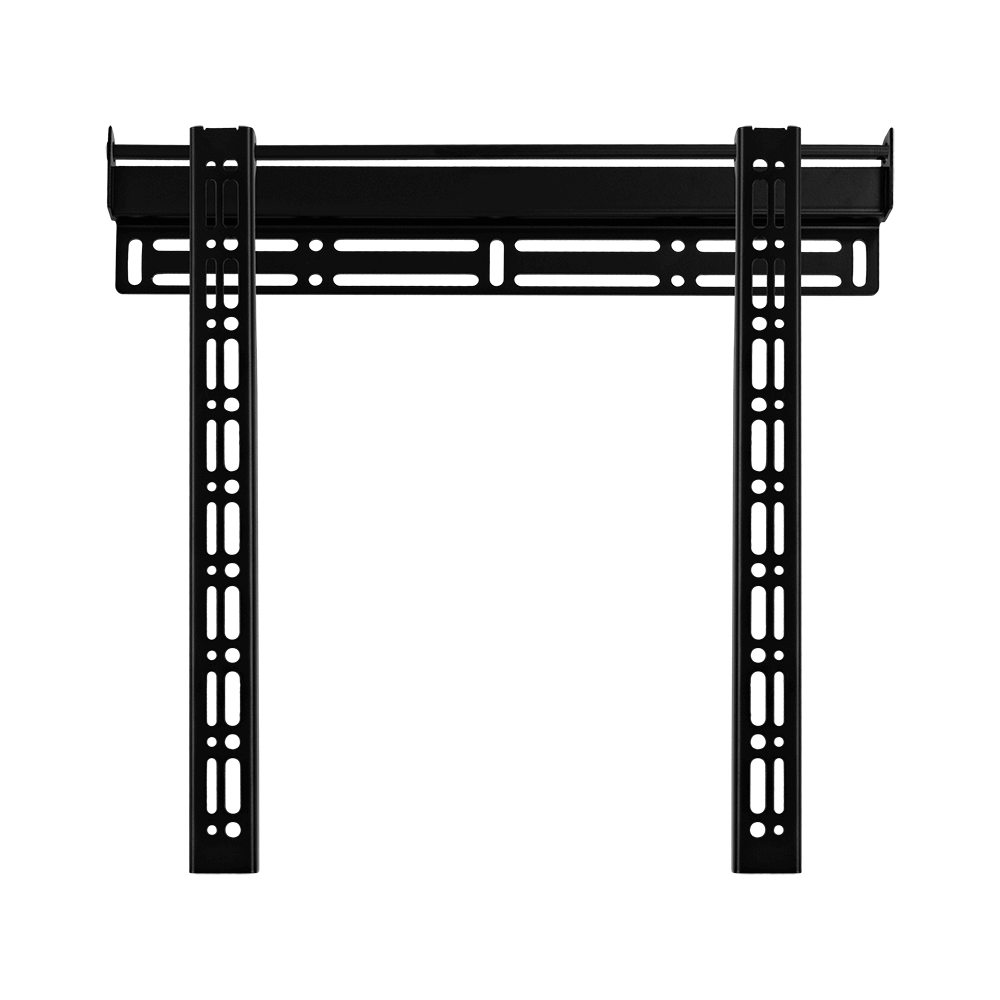

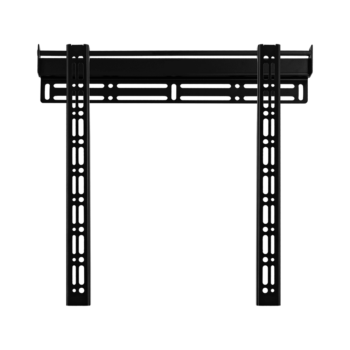

Suitable for residential, commercial and indoor marine installations as standard, the FB49 can mount screens with VESA mounting patterns from VESA75 to VESA800x500, with a maximum display weight limit of up to 70kg. The supplied security locking bar enables integrators to secure the bracket in place after fitting, either for stability in indoor marine applications or security in residential/commercial applications. Fitting is quick and easy thanks to the FB49’s hook on/hook off screen mount, while the brackets slim profile helps provide a discreet mounting solution.
| PRODUCT CODE | FB49 |
|---|---|
| BOLT PATTERN (VESA) | UP TO 800 X 500 |
| DEPTH FROM WALL | 30MM (1.18″) |
| FINISH | SATIN BLACK PAINT |
| MAX WEIGHT | 70KG (154LBS) |
| MOVEMENT TYPE | FIXED |
| SCREEN SIZES (APPROX) | 49″ – 80″ |
| SHIPPING INFORMATION | |
| SHIPPING DIMENSIONS | 91 x 13 x 5cm (3.58 x 0.51 x 0.19″) |
| SHIPPING WEIGHT | 4kg (11lbs) |
| DOWNLOADS / SUPPORT | |
| TECHNICAL SHEET |  FB49 TECH |
| INSTRUCTIONS | FB49 INSTRUCTIONS |
| CAD |  FB49 CAD |
