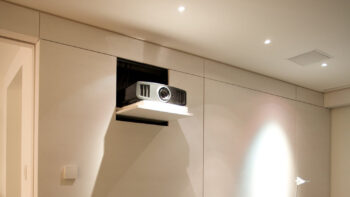

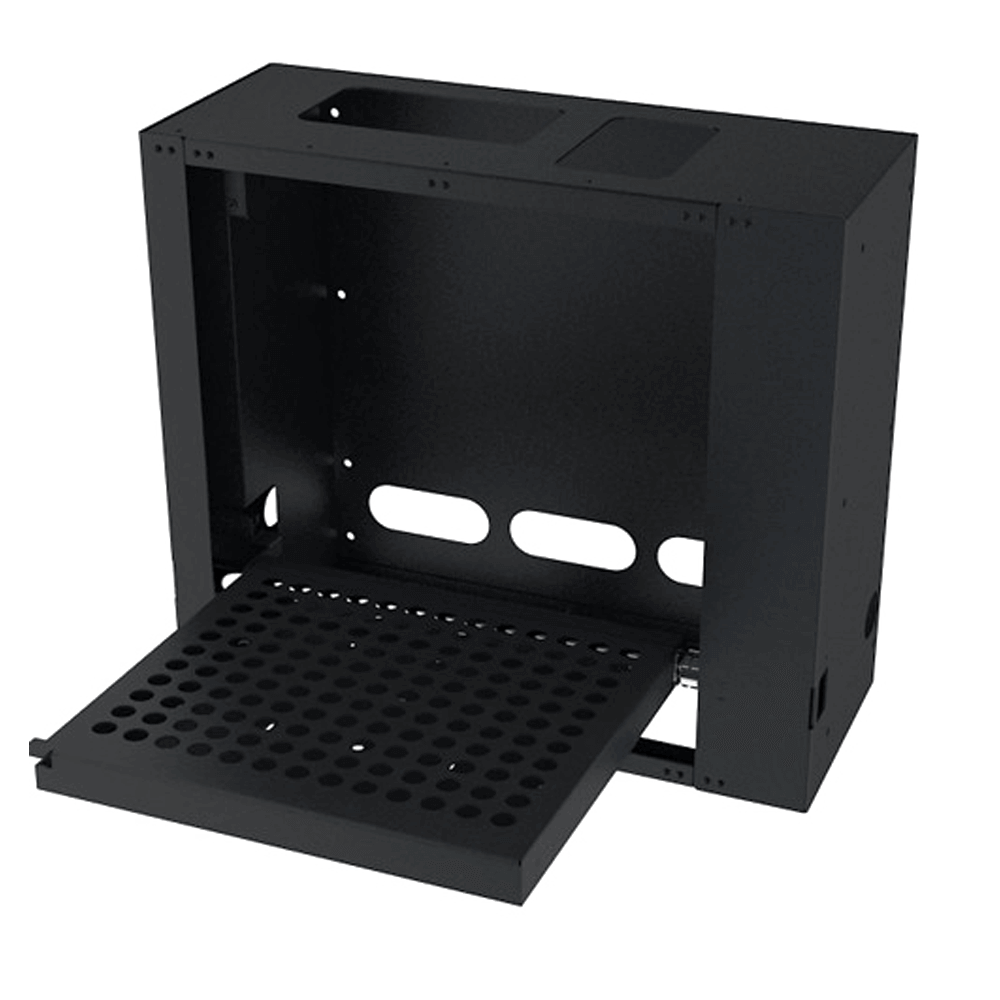

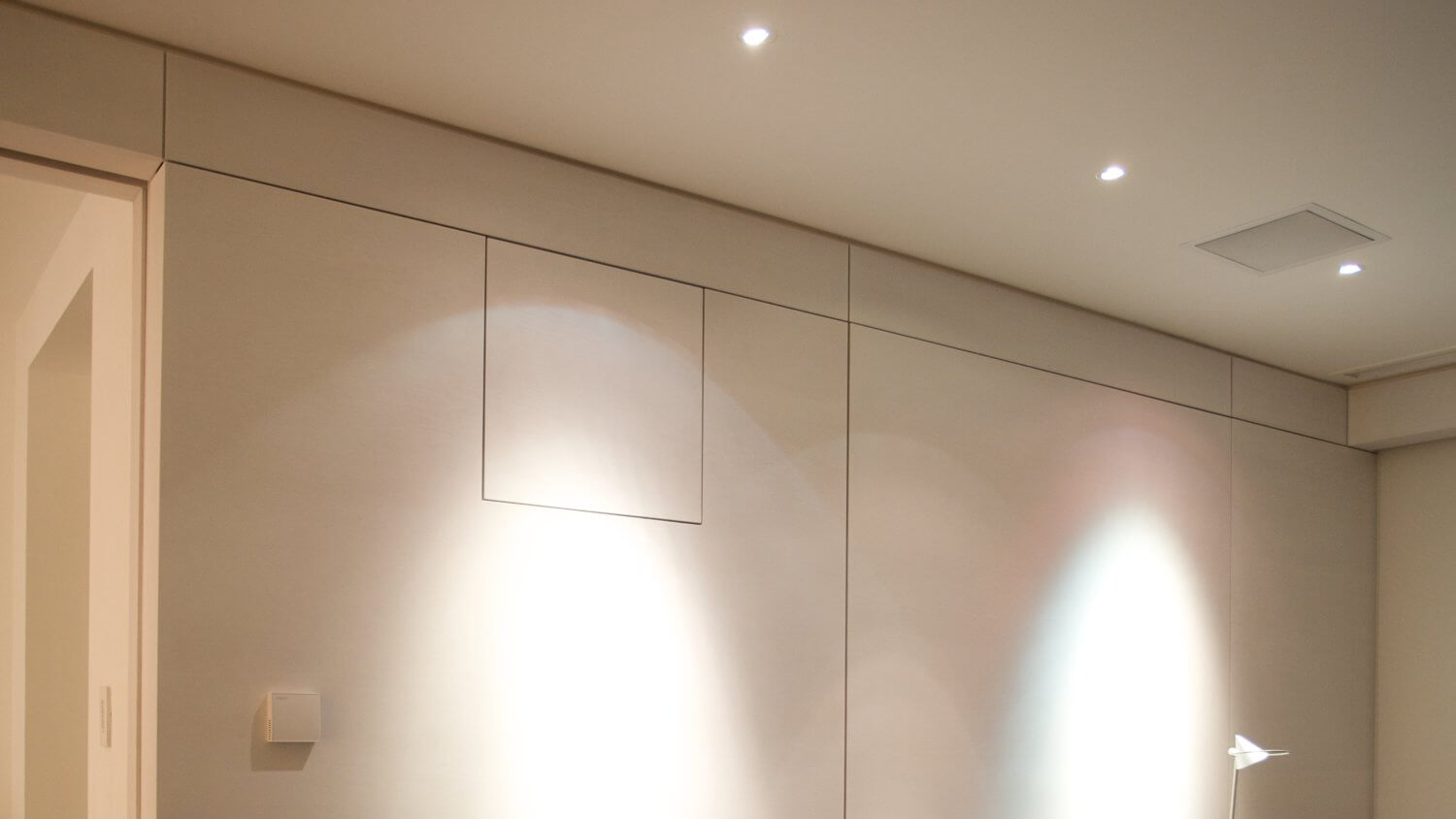

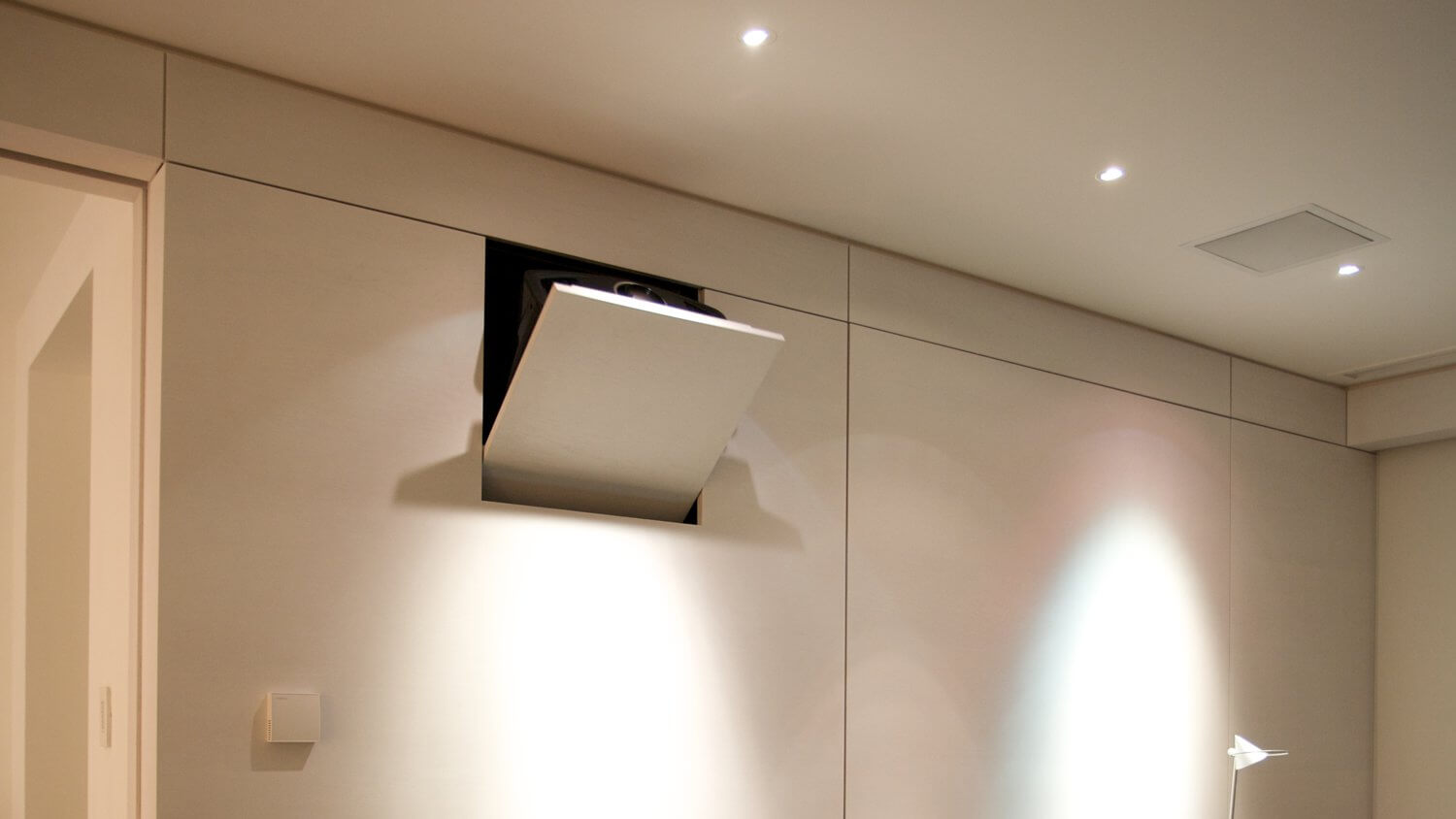

Superbly depth efficient and functional the Projector Hinge comes in a standard size to fit the vast majority of home cinema projectors, and is the perfect way to transform any living space into a home cinema.
- Quiet smooth action
- Discrete look and finish
- Full Cable Management
- Onboard electronics
- Universal projector mounting grid
- Easy Installation
TECHNICAL SPECIFICATION
| PRODUCT CODE | PH2 |
|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 59DB |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT – RAL 9005 |
| MAX HINGE ANGLE | 90° |
| MAX PROJECTOR SIZE | W480 X H220 X D510MM (18.89 X 8.66 X 20.07″) |
| MAX WEIGHT | 15KG (33LBS) |
| POWER CONSUMPTION | MAX 110W |
| POWER CONSUMPTION (STANDBY) | 3W |
| SHIPPING INFORMATION | |
| SHIPPING DIMENSIONS | 90 x 90 x 50cm (35.43 x 35.43 x 19.68″) |
| SHIPPING WEIGHT | 30kg (66lbs) |
| DOWNLOADS / SUPPORT | |
| TECHNICAL SHEET |  PH TECH |
| INSTRUCTIONS | PH2 INSTRUCTIONS |
| CAD |  PH2 CAD |
