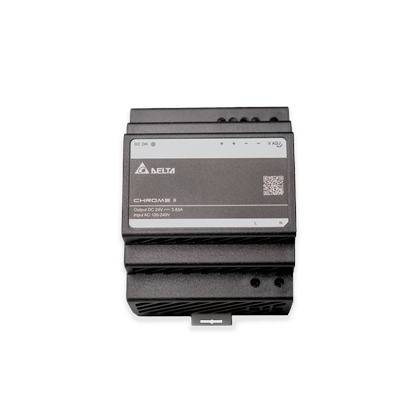

This dedicated DIN rail power supply feeds the DIN-LINK communication module with 24V DC. AC input terminals and DC output terminals provide the connections for a professionally installed Rako DIN system. DIN-LINK and other control modules are supplied separately.
Installation and documentation
Install within a compliant DIN enclosure using suitable fixings, supplied separately. Refer to the manufacturer documentation for load ratings, module dimensions and wiring requirements.
DIN-PSU-100 technical specifications
| Input | 230V AC |
|---|---|
| Output voltage | 24V DC |
| Dimensions | 70 × 87.5 × 55mm |
| DIN width | Four modules |
| Vertical clearance | 150mm |
| Weight | 230g |
Selection and installation advice
Use with the specified DIN-LINK system and confirm the complete power budget against the current manufacturer instructions. Provide the enclosure space and clearance required for safe ventilation and servicing.
For the wiring diagram and complete installation requirements, see the Rako DIN-PSU-100 manufacturer datasheet.
Planning a system or checking an existing installation? Explore our Rako lighting control range and project advice. Send us the model numbers, room requirements and load or fitting details so we can help specify the right parts.
