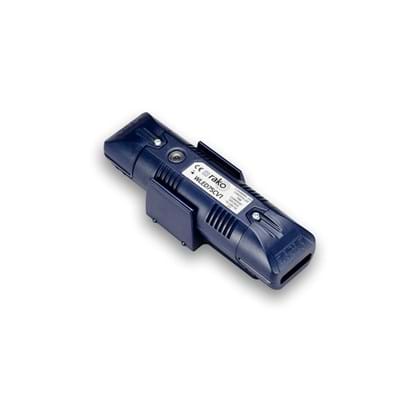

WLED75CV1 adds dimming control for compatible single-colour constant-voltage LED lighting to a Rako wired network. It supports a load of up to 75W with a 12V supply, or 150W with a 24V supply. Choose a suitable external DC power supply and ensure the LED voltage and load are within the controller ratings. Control is provided by the connected Rako wired system.
Manufacturer documentation
WLED75CV1 technical specifications
| Load type | Constant-voltage LED |
|---|---|
| Maximum load | 75W at 12V DC; 150W at 24V DC |
| Minimum load | 1W |
| LED supply | 12V or 24V DC |
| Network supply | 15V DC from Rako wired network |
| Dimensions | 172 × 46 × 40mm |
Selection and installation advice
Match the LED voltage to the external power supply and check the total connected wattage. Do not use for constant-current fittings. Allow for cable voltage drop and accessible positioning of the controller and supply.
For the wiring diagram and complete installation requirements, see the Rako WLED75CV1 manufacturer datasheet.
Planning a system or checking an existing installation? Explore our Rako lighting control range and project advice. Send us the model numbers, room requirements and load or fitting details so we can help specify the right parts.
