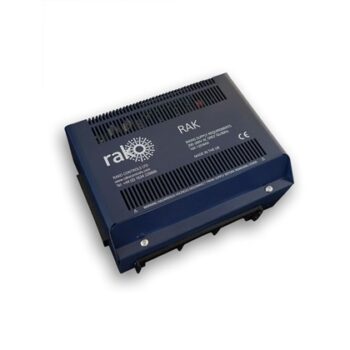

RAK8-MB Eight-Slot Motherboard

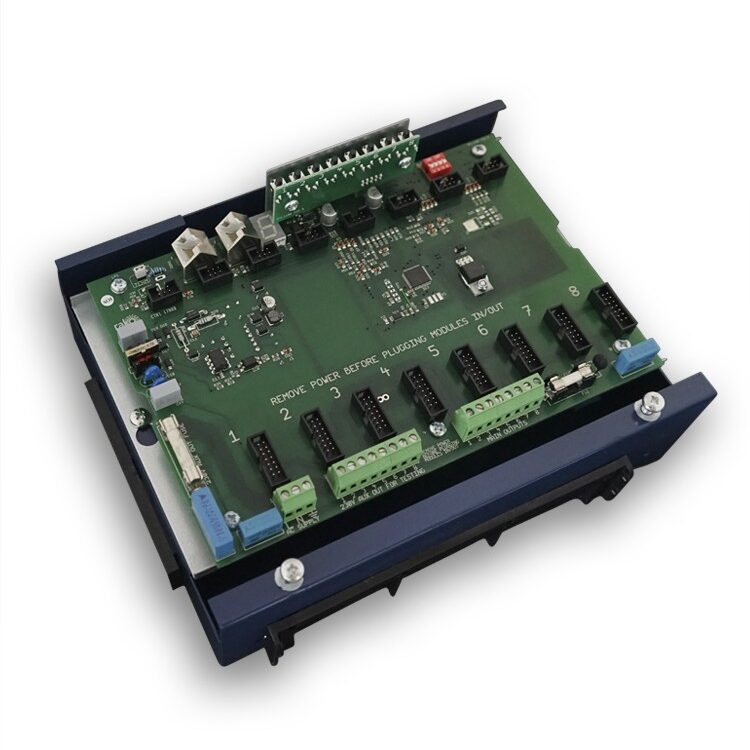

The RAK8-MB is the central housing and motherboard for up to eight Rako plug-in lighting or control modules. Select output cards to suit each circuit rather than assuming all eight outputs have the same capability.
RAK8-MB technical specifications
| Module capacity | Eight plug-in module slots |
|---|---|
| Dimensions | 208 × 256 × 110mm (current 2026 datasheet; check older enclosures) |
| Supply | 230V AC, 50Hz |
| Protection | 10A Type B MCB protection required |
| Control interface | RX-LINK for wireless or RAK-LINK for wired integration |
| Weight | 3kg |
Selection and installation advice
Specify the output cards and control interface alongside the motherboard. Allow an accessible, ventilated mounting position and have the electrician check circuit and total loading against the selected cards and Rako instructions.
For the wiring diagram and complete installation requirements, see the Rako RAK8-MB manufacturer datasheet.
Planning a system or checking an existing installation? Explore our Rako lighting control range and project advice. Send us the model numbers, room requirements and load or fitting details so we can help specify the right parts.
