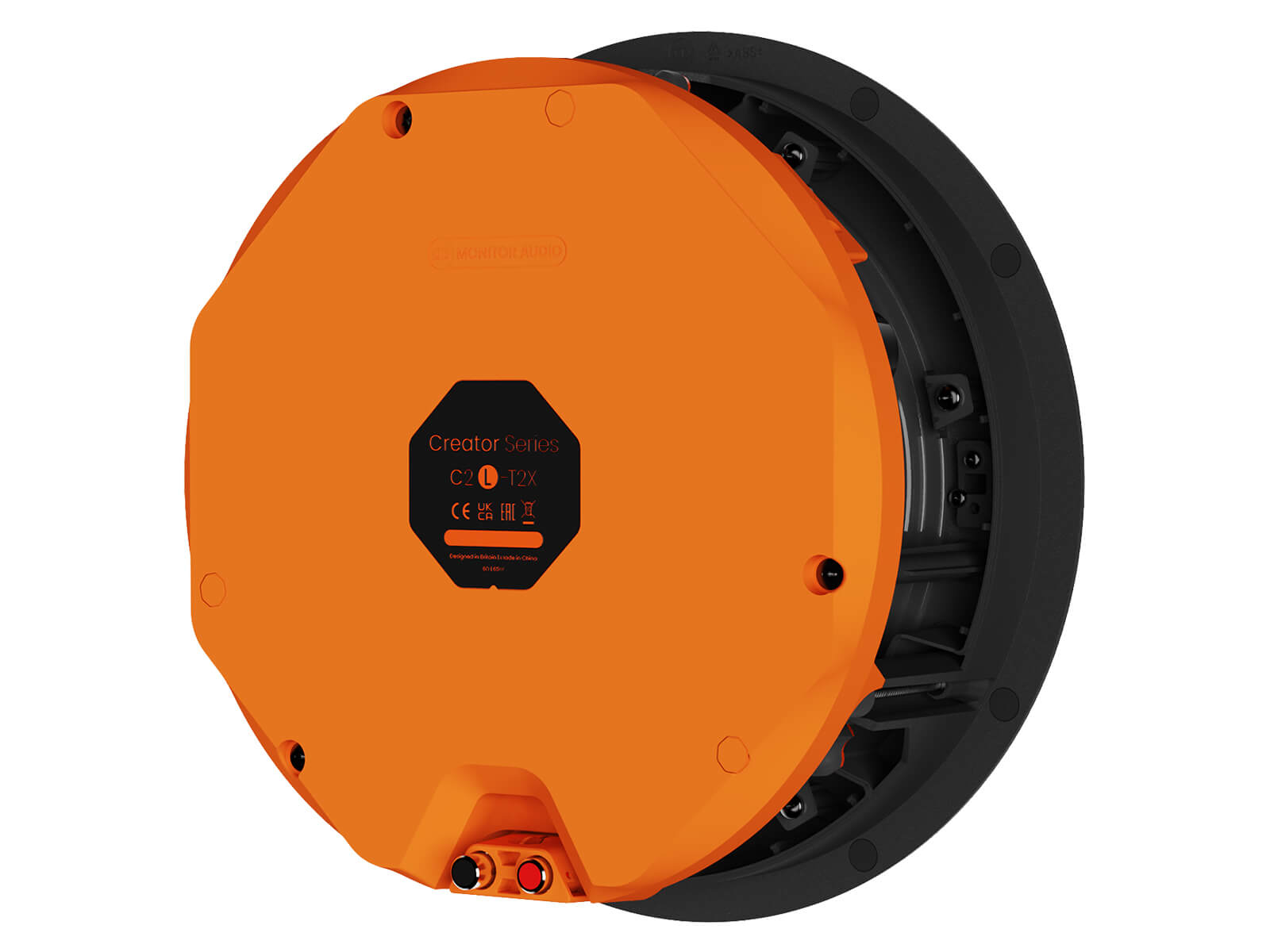

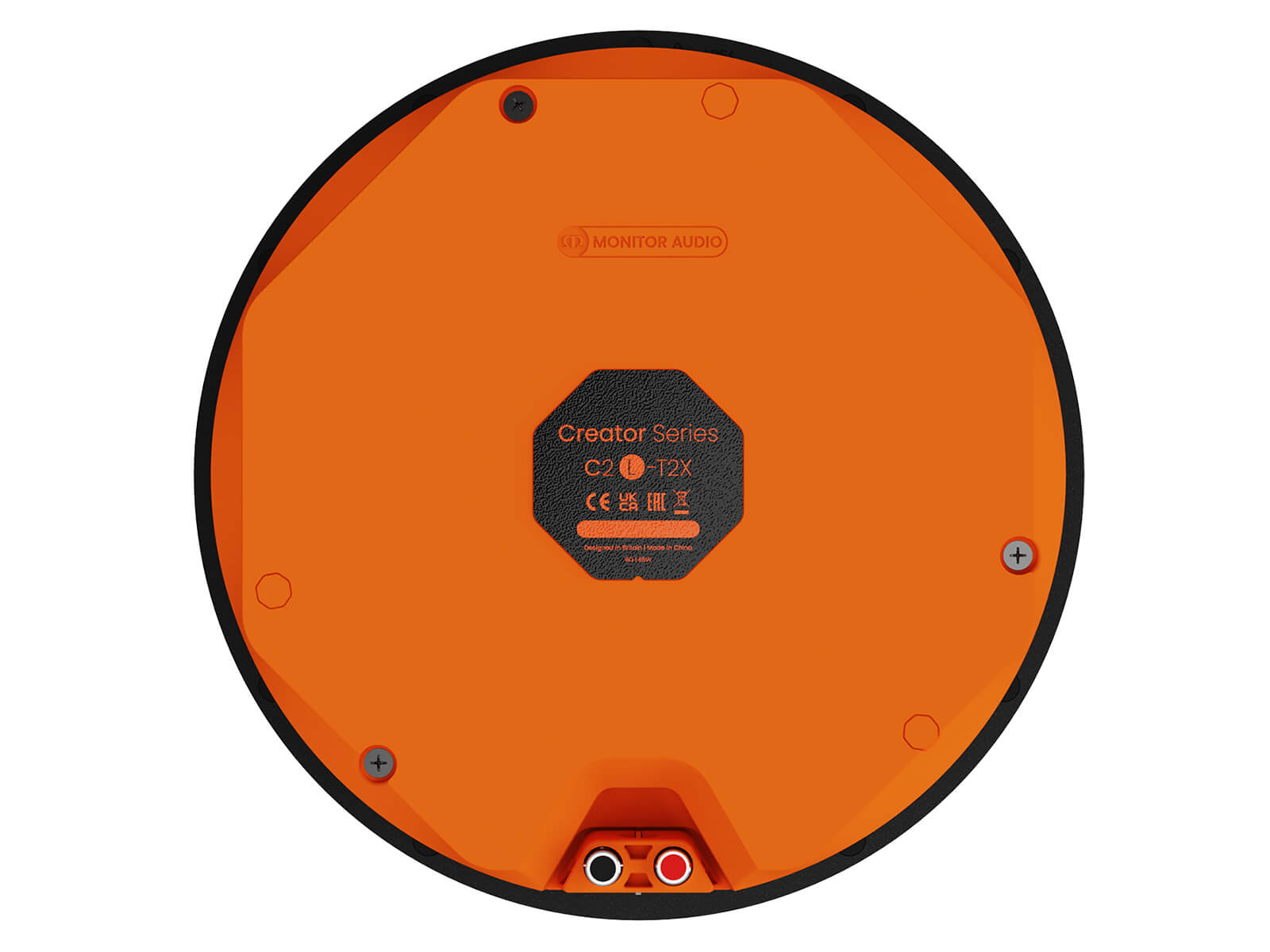

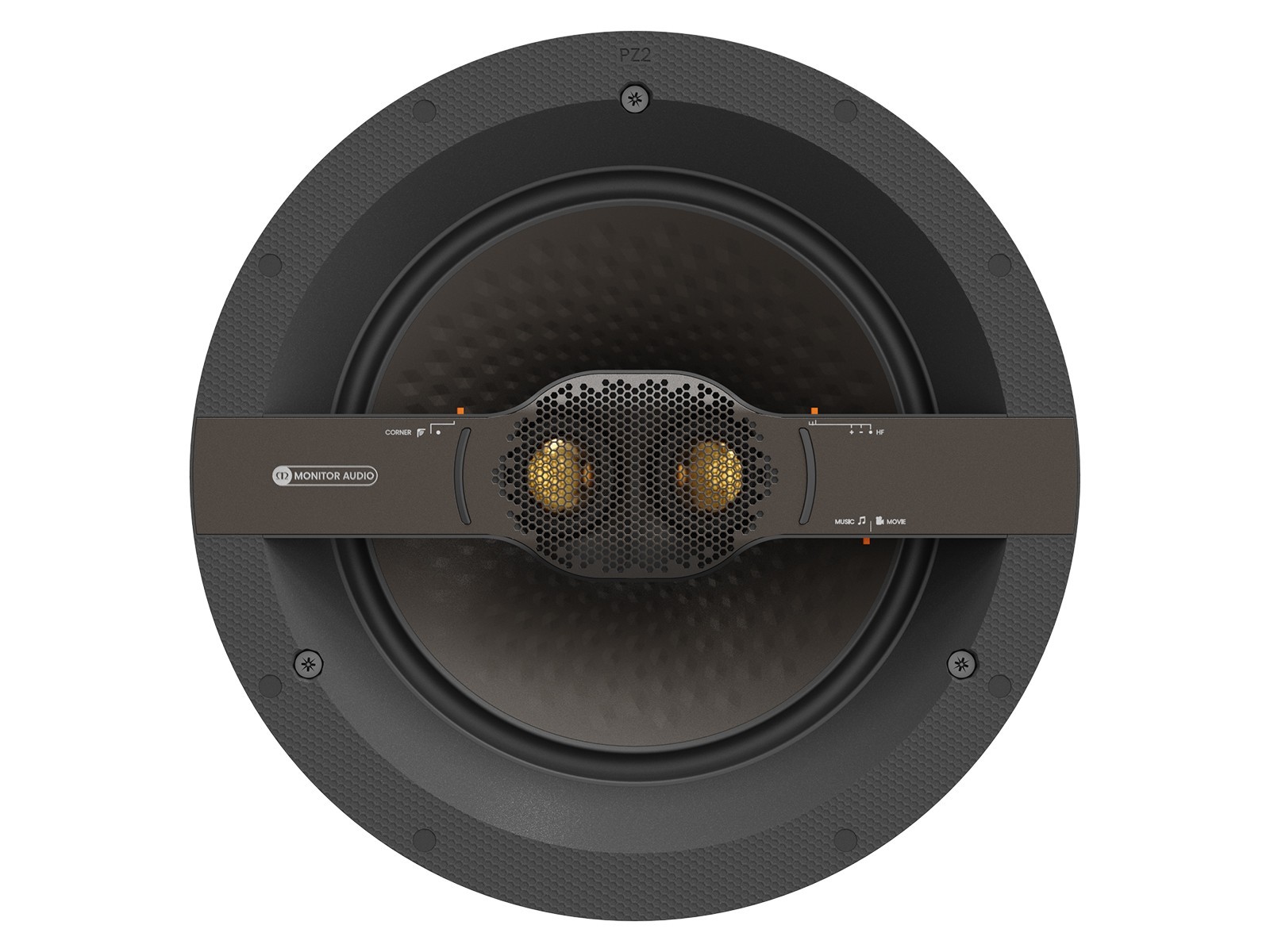

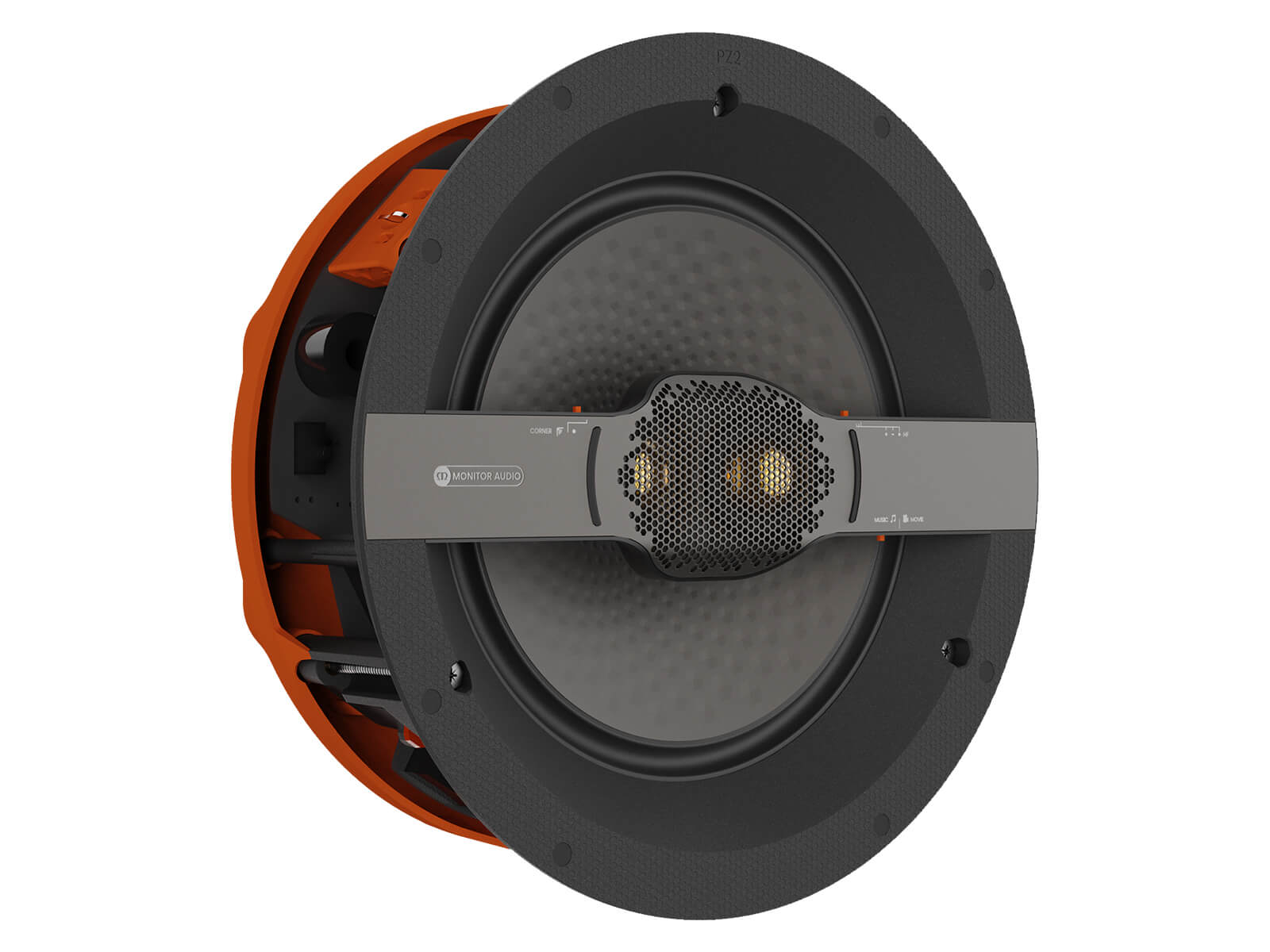

Monitor Audio C2L-T2X Stereo In-Ceiling Large

It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.

C2L-T2X has three modes:

• Cinema Mono FX (Di-pole, tweeters out of phase)
• Mono Wide Dispersion (Bi-Pole, tweeters in phase)
• Single Speaker Stereo (two binding posts accepting connection to two separate amplifier channels)

C2L-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.

System Format

2–Way

Channels

1 (Mono)
2 (Stereo)

Frequency Response, Installed (-6dB)

30 Hz – 30 kHz​

Nominal Impedance

4 Ohm (Mono)
8 Ohm (Stereo)

Minimum Impedance (20Hz to 20kHz)

3.2 Ohm @ 15 kHz (Mono)
6.4 Ohm @ 15 kHz (Stereo)

Sensitivity (2.83Vrms@1m, Installed)

88 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

(Mono) 117dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

240 W (Mono)
2 x 120 W (Stereo)

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

60 – 240 W (Mono)
2 x 60 – 240 W (Stereo)

Drive Unit Complement

1 x 9″ (229 mm) RST II dual-coil bass driver
2 x 1.25″ (32 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 2 kHz

Mounting Depth

99 mm (37/8″)

Cut-Out Hole Diameter

248 mm (93/4″)

External Dimensions (Including Grille (H x W x D))

278 x 278 x 103​ mm (1015/16 x 1015/16 x 44/16″)

Weight (each)

2.7 kg (6 lb)

Pre-Construction Bracket

CL-B

Cabinet Finish

Matt black & Orange​ & Bronze

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

– /0/ +

Music/Movie Switch

Music/Movie

Mono/Stereo Switch

Mono/Stereo
