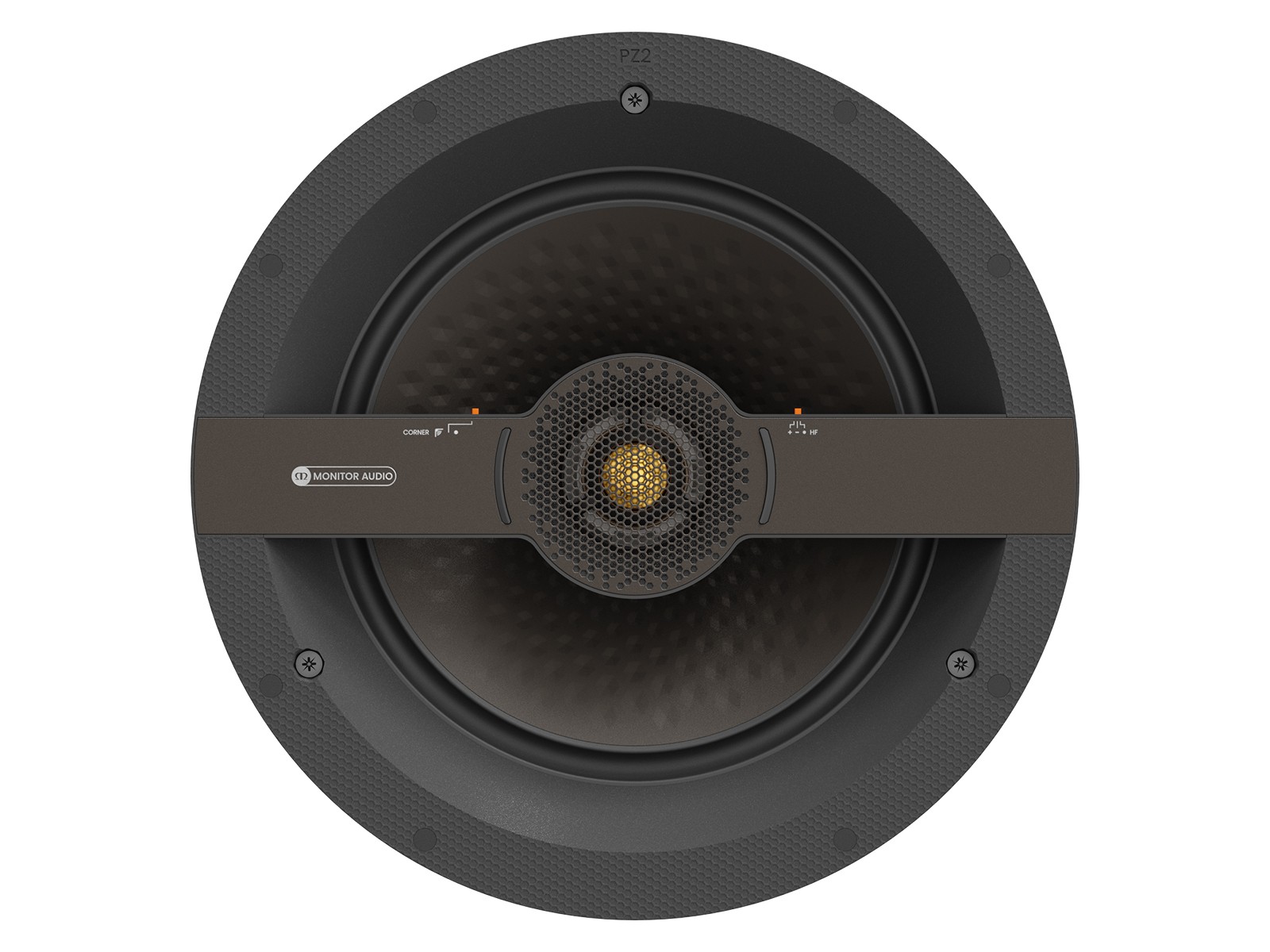

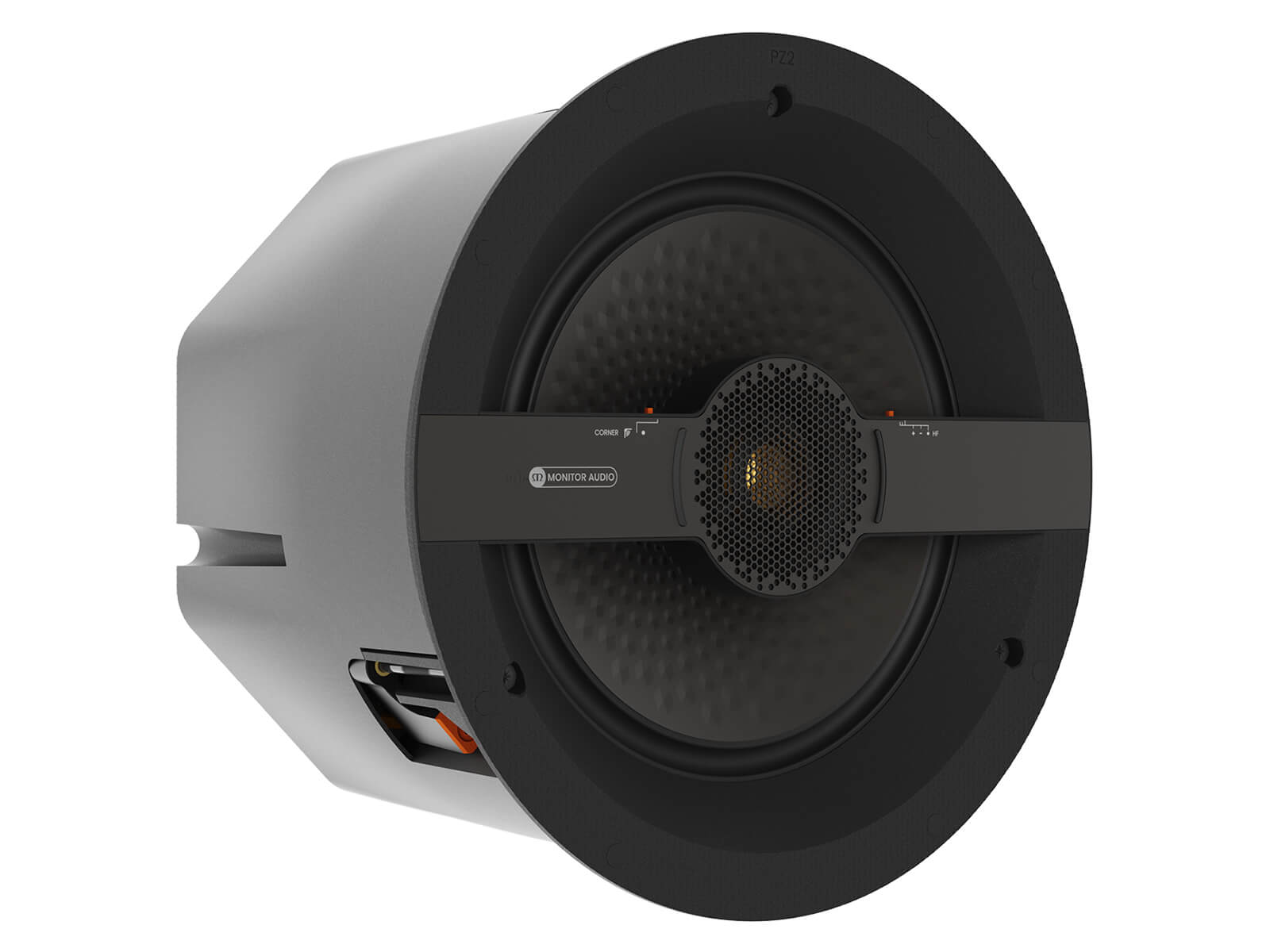

It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker.

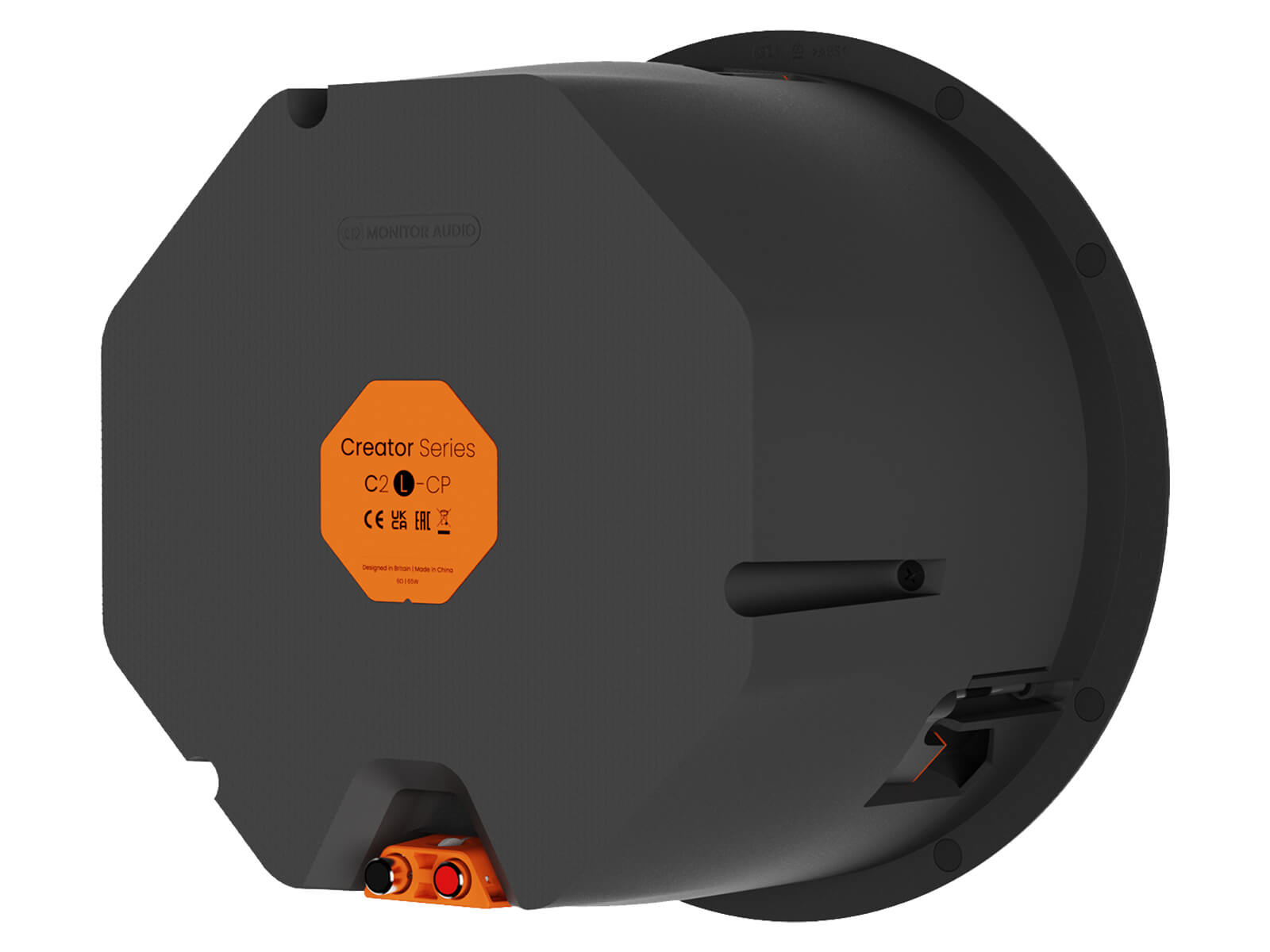

As a Controlled Performance (CP) model, it is fitted with fully sealed back boxes that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.
It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
System Format
2–Way
Channels
1
Frequency Response, Installed (-6dB)
75 Hz – 25 kHz​
Nominal Impedance
8 Ohm
Minimum Impedance (20Hz to 20kHz)
6.6 Ohm @ 10 kHz
Sensitivity (2.83Vrms@1m, Installed)
89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
120 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
100 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
50 – 200 W
Drive Unit Complement
1 x 9″ (229 mm) RST II bass driver
1 x 1.25″ (32 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 2.25 kHz
Bass Alignment
Sealed
Mounting Depth
177.5 mm (663/64″)
Cut-Out Hole Diameter
248 mm
External Dimensions (Including Grille (H x W x D))
278 x 278 x 181​ mm (1015/16 x 1015/16 x 71/8″)
Weight (each)
3.3 kg (7 lb 5 oz)
Pre-Construction Bracket
CL-B
Cabinet Finish
Matt black & Orange​ & Bronze
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
– /0/ +
