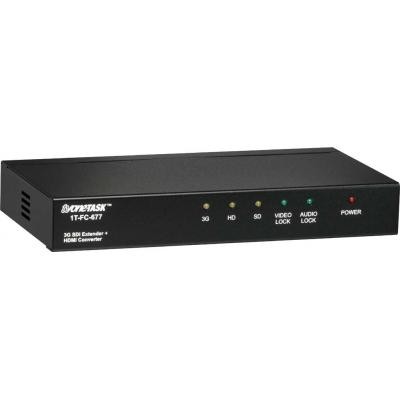

TV One 1T-FC-677

3G-SDI Extender with HDMI Converter

3G SD and HD-SDI to HDMI Signal Conversion Simultaneous Display of 3G SDI & HDMI Cascade multiple units for maximum flexibility

1T-FC-677 3G-SDI Extender with HDMI Converter allows SD-SDI HD-SDI and 3G-SDI signals to be displayed on either an SDI and an HDMI monitor simultaneously. The high Bitrate processing of 2.970 Gbit/s ensures fast signal transmission without signal loss and also allows great flexibility in monitor selection since extremely high quality displays can be accomplished on either a high resolution SDI monitor or high resolution HDMI display. Even greater utility is provided by the unit’s SDI Extender capability. Two Equalized and Re-clocked SDI outputs are provided.

Automatic input signal type detection is provided and up to 8 channels of Audio De-Embedding is possible. SDI Audio channels are automatically detected and are output over HDMI as either LPCM 2.0 or LPCM 7.1. If there are less than 8 active channels of audio the 1T-FC-677 will automatically select the first 2 channels and output them over the analog stereo and HDMI outputs as LPCM 2.0. If there are 8 active channels the first 2 channels will be output over the analog stereo outputs and the HDMI output will contain a full LPCM 7.1 audio signal. The unit employs the unique TV One-task locking DC power connector to enhance overall system mechanical security.

-3G SD and HD-SDI to HDMI Signal Conversion
-Simultaneous Display of 3G SDI & HDMI
-Operation at 2.970Gb/s 2.970/1.001Gb/s 1.485Gb/s 1.485/1.001Gb/s and 270Mb/s
-Supports SMPTE 425M(A&B) 424M 292M 259MC
-Equalized and Re-Clocked Looped Output
-Integrated 8-Channel 48Khz Audio De-Embedder
-LPCM 2.0 or LPCM 7.1 over the HDMI output
-Automatic Video Detection of 3GI SD & HD-SDI
-Conversion of SMPTE 425M B to A for 1080p
-Cascade multiple units for maximum flexibility
-Allowable SDI Transmission Distances of 300m for SD 200m for HD 100m for -3G
-Locking DC Connector
