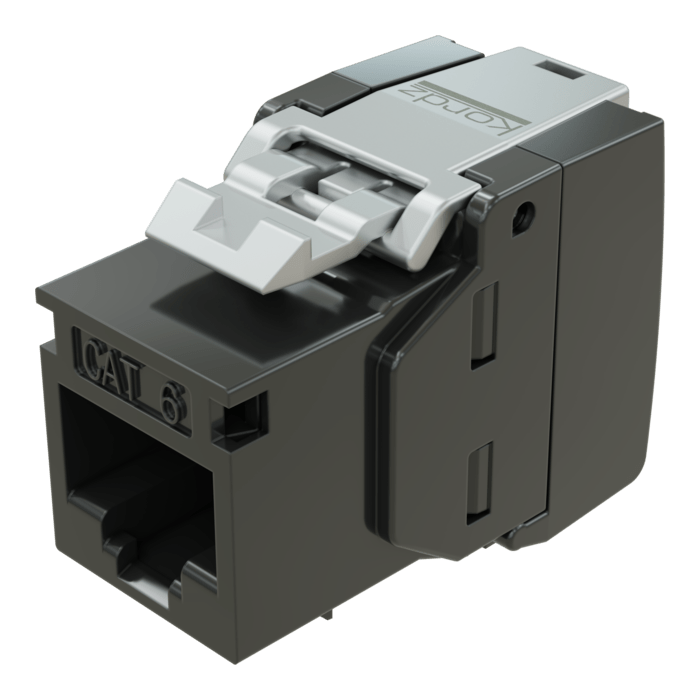

Kordz PRO SlimCat keystone RJ45 socket Cat6 Black – pack of 12
£57.85 inc VAT
10 people are viewing this product right now
PRO SlimCat keystone RJ45 socket, Category 6, toolless, unshielded, box of 12pcs
UL94 V-0 PC jacket material
Purchase this item and get 57 HAC Points
24 Hour Delivery
Keystone RJ45 Sockets perfectly complement Kordz ONE Series Bulk Category Cabling and give the professional integrator total confidence to deliver an end-to-end cabling solution. Featuring an ABS clamshell with a metal latching mechanism, Keystone RJ45 Sockets are very easy to fit. Match them with Kordz PRO Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.
Specification
General Information
Connector Part No.: T2R45S-C6XU-XX
Guaranteed Performance Category: Category 6
Applicable Standards: ANSI/TIA-568-C.2
Housing material: Polycarbonate
Flammability Rating: UL 94 V-0
Contact Material: Copper
Contact Plating IDC: Phospher bronze, Tin Plated
Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
Housing Colour: White / Black
Shielding Type: Unshielded
Operating Temperature: -40° to 66°C
MECHANICAL
Keystone Body Length: 37.33mm | 14.7in
Keystone Body Width: 17.10mm | 6.7in
Keystone Body Height: 23.68mm | 9.3in
Panel Mating Height: 16.10mm | 6.3in
Panel Mating Width: 14.50mm | 5.7in
Electronic
Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 500MΩ
RJ45 Cycle: 750 times
Insertion IDC: 20 times
Wire Gauge min/max: min: 26AWG / max: 23AWG
Conductor Diameter: max:8.5mm Ø
Cable Jacket Diameter max: 6.5mm Ø
